#include <Svc/FileDownlink/FileDownlink.hpp>

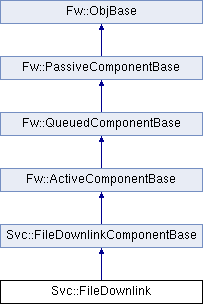

Inheritance diagram for Svc::FileDownlink:

Public Member Functions
	FileDownlink (const char *const compName)

void	init (const NATIVE_INT_TYPE queueDepth, const NATIVE_INT_TYPE instance)

void	configure (U32 timeout, U32 cooldown, U32 cycleTime, U32 fileQueueDepth)

void	preamble ()

	~FileDownlink ()

Public Member Functions inherited from Svc::FileDownlinkComponentBase
void	init (NATIVE_INT_TYPE queueDepth, NATIVE_INT_TYPE instance=0)
	Initialize FileDownlinkComponentBase object. More...

Fw::InputCmdPort *	get_cmdIn_InputPort (NATIVE_INT_TYPE portNum)

Svc::InputSchedPort *	get_Run_InputPort (NATIVE_INT_TYPE portNum)

Svc::InputSendFileRequestPort *	get_SendFile_InputPort (NATIVE_INT_TYPE portNum)

Fw::InputBufferSendPort *	get_bufferReturn_InputPort (NATIVE_INT_TYPE portNum)

Svc::InputPingPort *	get_pingIn_InputPort (NATIVE_INT_TYPE portNum)

void	set_cmdRegOut_OutputPort (NATIVE_INT_TYPE portNum, Fw::InputCmdRegPort *port)
	Connect port to cmdRegOut[portNum]. More...

void	set_cmdResponseOut_OutputPort (NATIVE_INT_TYPE portNum, Fw::InputCmdResponsePort *port)
	Connect port to cmdResponseOut[portNum]. More...

void	set_eventOut_OutputPort (NATIVE_INT_TYPE portNum, Fw::InputLogPort *port)
	Connect port to eventOut[portNum]. More...

void	set_timeCaller_OutputPort (NATIVE_INT_TYPE portNum, Fw::InputTimePort *port)
	Connect port to timeCaller[portNum]. More...

void	set_tlmOut_OutputPort (NATIVE_INT_TYPE portNum, Fw::InputTlmPort *port)
	Connect port to tlmOut[portNum]. More...

void	set_FileComplete_OutputPort (NATIVE_INT_TYPE portNum, Svc::InputSendFileCompletePort *port)
	Connect port to FileComplete[portNum]. More...

void	set_bufferSendOut_OutputPort (NATIVE_INT_TYPE portNum, Fw::InputBufferSendPort *port)
	Connect port to bufferSendOut[portNum]. More...

void	set_pingOut_OutputPort (NATIVE_INT_TYPE portNum, Svc::InputPingPort *port)
	Connect port to pingOut[portNum]. More...

void	regCommands ()
	Register commands with the Command Dispatcher. More...

Public Member Functions inherited from Fw::ActiveComponentBase
void	start (NATIVE_UINT_TYPE priority=Os::Task::TASK_DEFAULT, NATIVE_UINT_TYPE stackSize=Os::Task::TASK_DEFAULT, NATIVE_UINT_TYPE cpuAffinity=Os::Task::TASK_DEFAULT, NATIVE_UINT_TYPE identifier=Os::Task::TASK_DEFAULT)
	called by instantiator when task is to be started More...

	DEPRECATED (void start(NATIVE_INT_TYPE identifier, NATIVE_INT_TYPE priority, NATIVE_INT_TYPE stackSize, NATIVE_INT_TYPE cpuAffinity=-1), "Please switch to start(NATIVE_UINT_TYPE priority, NATIVE_UINT_TYPE stackSize, NATIVE_UINT_TYPE cpuAffinity, NATIVE_UINT_TYPE identifier)")
	called by instantiator when task is to be started More...

void	exit ()
	exit task in active component More...

Os::Task::TaskStatus	join (void **value_ptr)
	provide return value of thread if value_ptr is not NULL More...

Public Member Functions inherited from Fw::PassiveComponentBase
void	setIdBase (const U32)
	Set the ID base. More...

U32	getIdBase () const

Additional Inherited Members
Public Types inherited from Fw::ActiveComponentBase
enum	{ ACTIVE_COMPONENT_EXIT }

Public Types inherited from Fw::QueuedComponentBase
enum	MsgDispatchStatus { MSG_DISPATCH_OK , MSG_DISPATCH_EMPTY , MSG_DISPATCH_ERROR , MSG_DISPATCH_EXIT }

Protected Types inherited from Svc::FileDownlinkComponentBase
enum	{ NUM_CMDIN_INPUT_PORTS = 1 }
	Enumerations for numbers of special input ports. More...

enum	{ NUM_RUN_INPUT_PORTS = 1 , NUM_SENDFILE_INPUT_PORTS = 1 , NUM_BUFFERRETURN_INPUT_PORTS = 1 , NUM_PINGIN_INPUT_PORTS = 1 }
	Enumerations for numbers of typed input ports. More...

enum	{ NUM_CMDREGOUT_OUTPUT_PORTS = 1 , NUM_CMDRESPONSEOUT_OUTPUT_PORTS = 1 , NUM_EVENTOUT_OUTPUT_PORTS = 1 , NUM_TEXTEVENTOUT_OUTPUT_PORTS = 1 , NUM_TIMECALLER_OUTPUT_PORTS = 1 , NUM_TLMOUT_OUTPUT_PORTS = 1 }
	Enumerations for numbers of special output ports. More...

enum	{ NUM_FILECOMPLETE_OUTPUT_PORTS = 1 , NUM_BUFFERSENDOUT_OUTPUT_PORTS = 1 , NUM_PINGOUT_OUTPUT_PORTS = 1 }
	Enumerations for numbers of typed output ports. More...

enum	{ OPCODE_SENDFILE = 0x0 , OPCODE_CANCEL = 0x1 , OPCODE_SENDPARTIAL = 0x2 }
	Command opcodes. More...

enum	{ EVENTID_FILEOPENERROR = 0x0 , EVENTID_FILEREADERROR = 0x1 , EVENTID_FILESENT = 0x2 , EVENTID_DOWNLINKCANCELED = 0x3 , EVENTID_DOWNLINKTIMEOUT = 0x4 , EVENTID_DOWNLINKPARTIALWARNING = 0x5 , EVENTID_DOWNLINKPARTIALFAIL = 0x6 , EVENTID_SENDDATAFAIL = 0x7 , EVENTID_SENDSTARTED = 0x8 }
	Event IDs. More...

enum	{ CHANNELID_FILESSENT = 0x0 , CHANNELID_PACKETSSENT = 0x1 , CHANNELID_WARNINGS = 0x2 }
	Channel IDs. More...

Protected Member Functions inherited from Svc::FileDownlinkComponentBase
	FileDownlinkComponentBase (const char *compName="")
	Construct FileDownlinkComponentBase object. More...

virtual	~FileDownlinkComponentBase ()
	Destroy FileDownlinkComponentBase object. More...

NATIVE_INT_TYPE	getNum_cmdIn_InputPorts () const

NATIVE_INT_TYPE	getNum_Run_InputPorts () const

NATIVE_INT_TYPE	getNum_SendFile_InputPorts () const

NATIVE_INT_TYPE	getNum_bufferReturn_InputPorts () const

NATIVE_INT_TYPE	getNum_pingIn_InputPorts () const

NATIVE_INT_TYPE	getNum_cmdRegOut_OutputPorts () const

NATIVE_INT_TYPE	getNum_cmdResponseOut_OutputPorts () const

NATIVE_INT_TYPE	getNum_eventOut_OutputPorts () const

NATIVE_INT_TYPE	getNum_timeCaller_OutputPorts () const

NATIVE_INT_TYPE	getNum_tlmOut_OutputPorts () const

NATIVE_INT_TYPE	getNum_FileComplete_OutputPorts () const

NATIVE_INT_TYPE	getNum_bufferSendOut_OutputPorts () const

NATIVE_INT_TYPE	getNum_pingOut_OutputPorts () const

bool	isConnected_cmdRegOut_OutputPort (NATIVE_INT_TYPE portNum)

bool	isConnected_cmdResponseOut_OutputPort (NATIVE_INT_TYPE portNum)

bool	isConnected_eventOut_OutputPort (NATIVE_INT_TYPE portNum)

bool	isConnected_timeCaller_OutputPort (NATIVE_INT_TYPE portNum)

bool	isConnected_tlmOut_OutputPort (NATIVE_INT_TYPE portNum)

bool	isConnected_FileComplete_OutputPort (NATIVE_INT_TYPE portNum)

bool	isConnected_bufferSendOut_OutputPort (NATIVE_INT_TYPE portNum)

bool	isConnected_pingOut_OutputPort (NATIVE_INT_TYPE portNum)

void	Run_handlerBase (NATIVE_INT_TYPE portNum, NATIVE_UINT_TYPE context)
	Handler base-class function for input port Run. More...

Svc::SendFileResponse	SendFile_handlerBase (NATIVE_INT_TYPE portNum, const Svc::SendFileRequestPortStrings::StringSize100 &sourceFileName, const Svc::SendFileRequestPortStrings::StringSize100 &destFileName, U32 offset, U32 length)
	Handler base-class function for input port SendFile. More...

void	bufferReturn_handlerBase (NATIVE_INT_TYPE portNum, Fw::Buffer &fwBuffer)
	Handler base-class function for input port bufferReturn. More...

void	pingIn_handlerBase (NATIVE_INT_TYPE portNum, U32 key)
	Handler base-class function for input port pingIn. More...

virtual void	Run_preMsgHook (NATIVE_INT_TYPE portNum, NATIVE_UINT_TYPE context)
	Pre-message hook for async input port Run. More...

virtual void	bufferReturn_preMsgHook (NATIVE_INT_TYPE portNum, Fw::Buffer &fwBuffer)
	Pre-message hook for async input port bufferReturn. More...

virtual void	pingIn_preMsgHook (NATIVE_INT_TYPE portNum, U32 key)
	Pre-message hook for async input port pingIn. More...

void	FileComplete_out (NATIVE_INT_TYPE portNum, const Svc::SendFileResponse &resp)
	Invoke output port FileComplete. More...

void	bufferSendOut_out (NATIVE_INT_TYPE portNum, Fw::Buffer &fwBuffer)
	Invoke output port bufferSendOut. More...

void	pingOut_out (NATIVE_INT_TYPE portNum, U32 key)
	Invoke output port pingOut. More...

void	cmdResponse_out (FwOpcodeType opCode, U32 cmdSeq, Fw::CmdResponse response)
	Emit command response. More...

void	SendFile_cmdHandlerBase (FwOpcodeType opCode, U32 cmdSeq, Fw::CmdArgBuffer &args)

void	Cancel_cmdHandlerBase (FwOpcodeType opCode, U32 cmdSeq, Fw::CmdArgBuffer &args)

void	SendPartial_cmdHandlerBase (FwOpcodeType opCode, U32 cmdSeq, Fw::CmdArgBuffer &args)

virtual void	SendFile_preMsgHook (FwOpcodeType opCode, U32 cmdSeq)
	Pre-message hook for command SendFile. More...

virtual void	Cancel_preMsgHook (FwOpcodeType opCode, U32 cmdSeq)
	Pre-message hook for command Cancel. More...

virtual void	SendPartial_preMsgHook (FwOpcodeType opCode, U32 cmdSeq)
	Pre-message hook for command SendPartial. More...

void	log_WARNING_HI_FileOpenError (const Fw::LogStringArg &fileName)

void	log_WARNING_HI_FileReadError (const Fw::LogStringArg &fileName, I32 status)

void	log_ACTIVITY_HI_FileSent (const Fw::LogStringArg &sourceFileName, const Fw::LogStringArg &destFileName)

void	log_ACTIVITY_HI_DownlinkCanceled (const Fw::LogStringArg &sourceFileName, const Fw::LogStringArg &destFileName)

void	log_WARNING_HI_DownlinkTimeout (const Fw::LogStringArg &sourceFileName, const Fw::LogStringArg &destFileName)

void	log_WARNING_LO_DownlinkPartialWarning (U32 startOffset, U32 length, U32 filesize, const Fw::LogStringArg &sourceFileName, const Fw::LogStringArg &destFileName)

void	log_WARNING_HI_DownlinkPartialFail (const Fw::LogStringArg &sourceFileName, const Fw::LogStringArg &destFileName, U32 startOffset, U32 filesize)

void	log_WARNING_HI_SendDataFail (const Fw::LogStringArg &sourceFileName, U32 byteOffset)

void	log_ACTIVITY_HI_SendStarted (U32 fileSize, const Fw::LogStringArg &sourceFileName, const Fw::LogStringArg &destFileName)

void	tlmWrite_FilesSent (U32 arg, Fw::Time _tlmTime=Fw::Time())

void	tlmWrite_PacketsSent (U32 arg, Fw::Time _tlmTime=Fw::Time())

void	tlmWrite_Warnings (U32 arg, Fw::Time _tlmTime=Fw::Time())

Fw::Time	getTime ()

virtual void	lock ()
	Lock the guarded mutex. More...

virtual void	unLock ()
	Unlock the guarded mutex. More...

Protected Member Functions inherited from Fw::ActiveComponentBase
	ActiveComponentBase (const char *name)
	Constructor. More...

virtual	~ActiveComponentBase ()
	Destructor. More...

void	init (NATIVE_INT_TYPE instance)
	initialization code More...

virtual void	loop ()
	The function that will loop dispatching messages. More...

virtual void	finalizer ()
	A function that will be called after exiting the loop. More...

Protected Member Functions inherited from Fw::QueuedComponentBase
	QueuedComponentBase (const char *name)
	Constructor. More...

virtual	~QueuedComponentBase ()
	Destructor. More...

void	init (NATIVE_INT_TYPE instance)
	initialization function More...

Os::Queue::QueueStatus	createQueue (NATIVE_INT_TYPE depth, NATIVE_INT_TYPE msgSize)

NATIVE_INT_TYPE	getNumMsgsDropped ()
	return number of messages dropped More...

void	incNumMsgDropped ()
	increment the number of messages dropped More...

Protected Member Functions inherited from Fw::PassiveComponentBase
	PassiveComponentBase (const char *name)
	Named constructor. More...

virtual	~PassiveComponentBase ()
	Destructor. More...

void	init (NATIVE_INT_TYPE instance)
	Initialization function. More...

NATIVE_INT_TYPE	getInstance () const

Protected Member Functions inherited from Fw::ObjBase
	ObjBase (const char *name)
	ObjBase constructor. More...

virtual	~ObjBase ()
	Destructor. More...

void	init ()
	Object initializer. More...

Protected Attributes inherited from Fw::ActiveComponentBase
Os::Task	m_task
	task object for active component More...

Protected Attributes inherited from Fw::QueuedComponentBase
Os::Queue	m_queue
	queue object for active component More...

Detailed Description

Definition at line 25 of file FileDownlink.hpp.

Constructor & Destructor Documentation

◆ FileDownlink()

Svc::FileDownlink::FileDownlink ( const char *const compName )

Construct object FileDownlink

Parameters

compName The component name

Definition at line 25 of file FileDownlink.cpp.

◆ ~FileDownlink()

Svc::FileDownlink::~FileDownlink ( )

Destroy object FileDownlink

Definition at line 82 of file FileDownlink.cpp.

Member Function Documentation

◆ configure()

void Svc::FileDownlink::configure	(	U32	timeout,
		U32	cooldown,
		U32	cycleTime,
		U32	fileQueueDepth
	)

Configure FileDownlink component

Parameters

timeout	Timeout threshold (milliseconds) while in WAIT state
cooldown	Cooldown (in ms) between finishing a downlink and starting the next file.
cycleTime	Rate at which we are running
fileQueueDepth	Max number of items in file downlink queue

Definition at line 55 of file FileDownlink.cpp.

◆ init()

void Svc::FileDownlink::init	(	const NATIVE_INT_TYPE	queueDepth,
		const NATIVE_INT_TYPE	instance
	)

Initialize object FileDownlink

Parameters

queueDepth	The queue depth
instance	The instance number

Definition at line 46 of file FileDownlink.cpp.

◆ preamble()

void Svc::FileDownlink::preamble ( )

virtual

Start FileDownlink component The component must be configured with configure() before starting.

Reimplemented from Fw::ActiveComponentBase.

Definition at line 76 of file FileDownlink.cpp.

The documentation for this class was generated from the following files:

Svc/FileDownlink/FileDownlink.hpp
Svc/FileDownlink/FileDownlink.cpp
